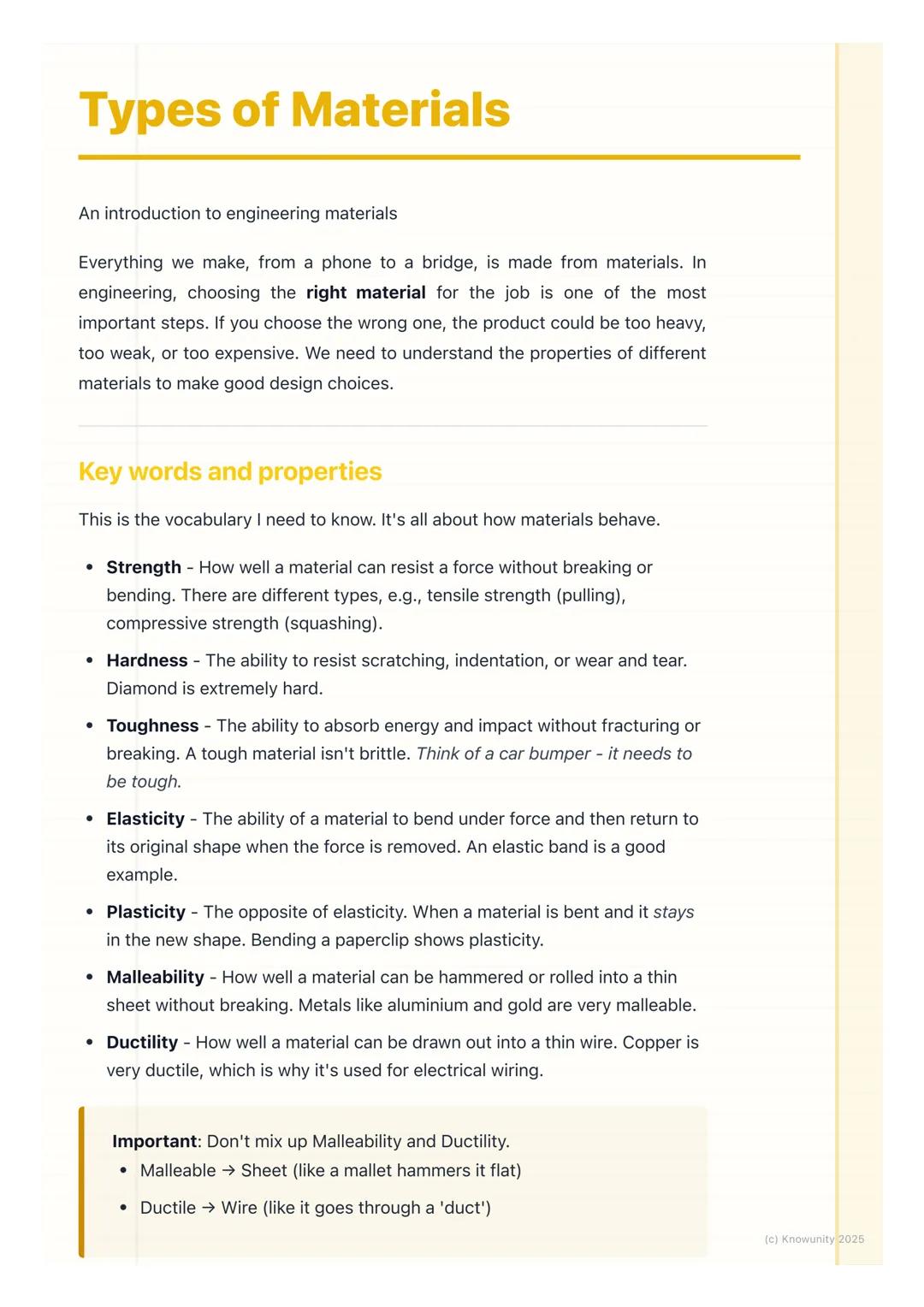

Material Properties and Vocabulary

Understanding how materials behave is your first step to becoming an engineering expert. These properties determine whether a material is perfect for the job or completely useless.

Strength is how well a material resists force without breaking. There's tensile strength (pulling forces) and compressive strength (squashing forces). Hardness measures resistance to scratching - think of diamond being incredibly hard.

Toughness is different from strength - it's about absorbing impact without breaking. Car bumpers need to be tough, not just strong. Elasticity means bouncing back to original shape (like elastic bands), while plasticity is the opposite - staying bent like a paperclip.

Here's a brilliant memory trick: Malleable materials can be hammered into sheets (like a mallet flattens things), whilst ductile materials can be drawn into wires (like going through a duct). Don't mix these up in your exams!

Quick Test: Try bending a paperclip - first it's elastic (springs back), then becomes plastic (stays bent). This shows both properties in action!

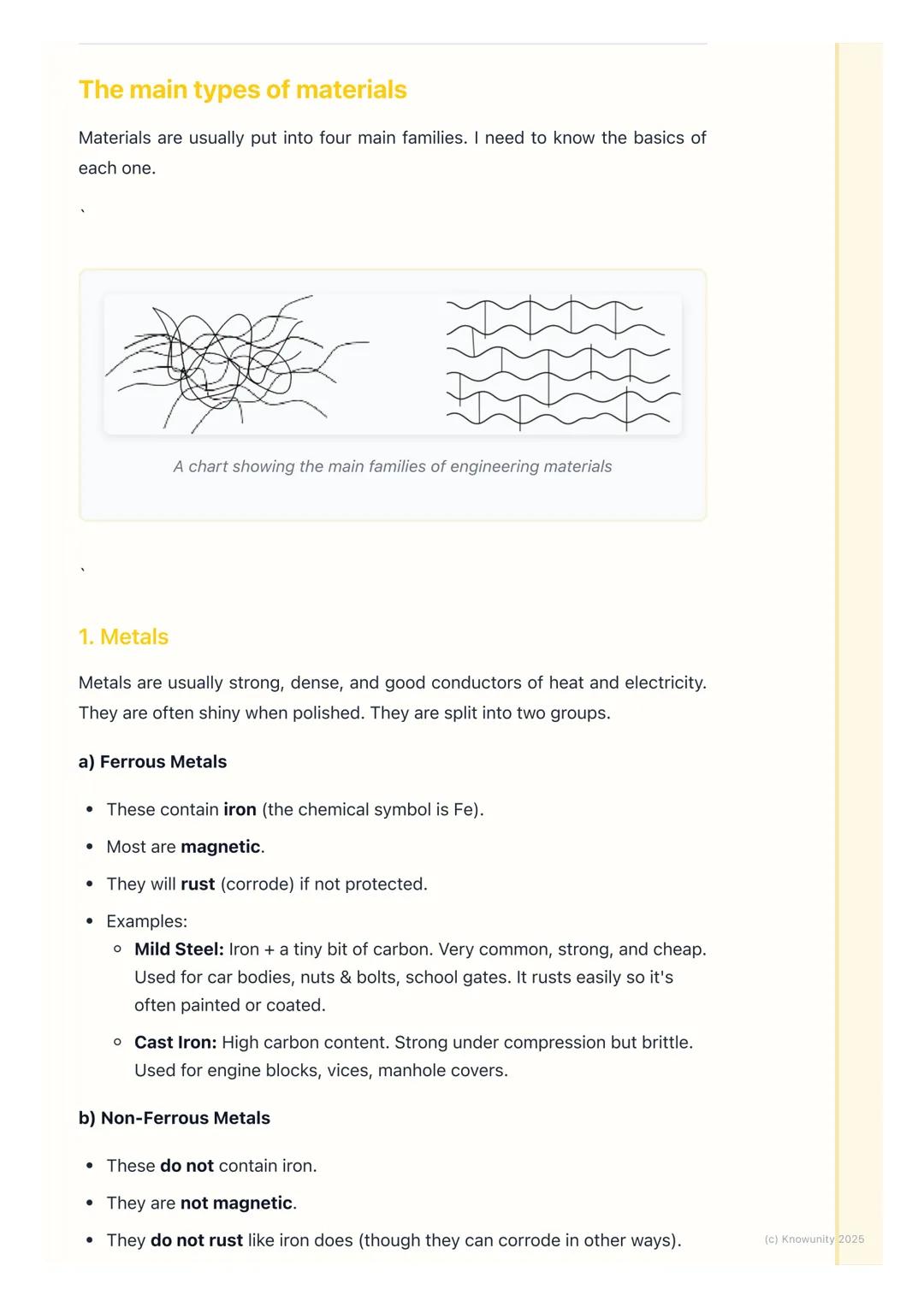

Metals: Ferrous vs Non-Ferrous

Metals are brilliant conductors and usually strong, but they're split into two main camps based on one simple thing: iron content.

Ferrous metals contain iron (Fe on the periodic table). They're magnetic and will rust if you don't protect them. Mild steel is everywhere - car bodies, school gates, nuts and bolts. It's cheap and strong but rusts easily, so it needs paint or coating. Cast iron has loads of carbon, making it strong under compression but brittle - perfect for engine blocks.

Non-ferrous metals have no iron, so they're not magnetic and don't rust the same way. Aluminium is your lightweight champion - drink cans, window frames, and aeroplanes all use it because it's light and corrosion-resistant. Copper is the electrical superstar because it conducts electricity brilliantly and is super ductile for wire-making.

The key difference is simple: ferrous has iron and rusts, non-ferrous doesn't have iron and won't rust in the traditional way.

Memory Tip: Ferrous contains Fe (iron) - if it sticks to a magnet and can rust, it's ferrous!

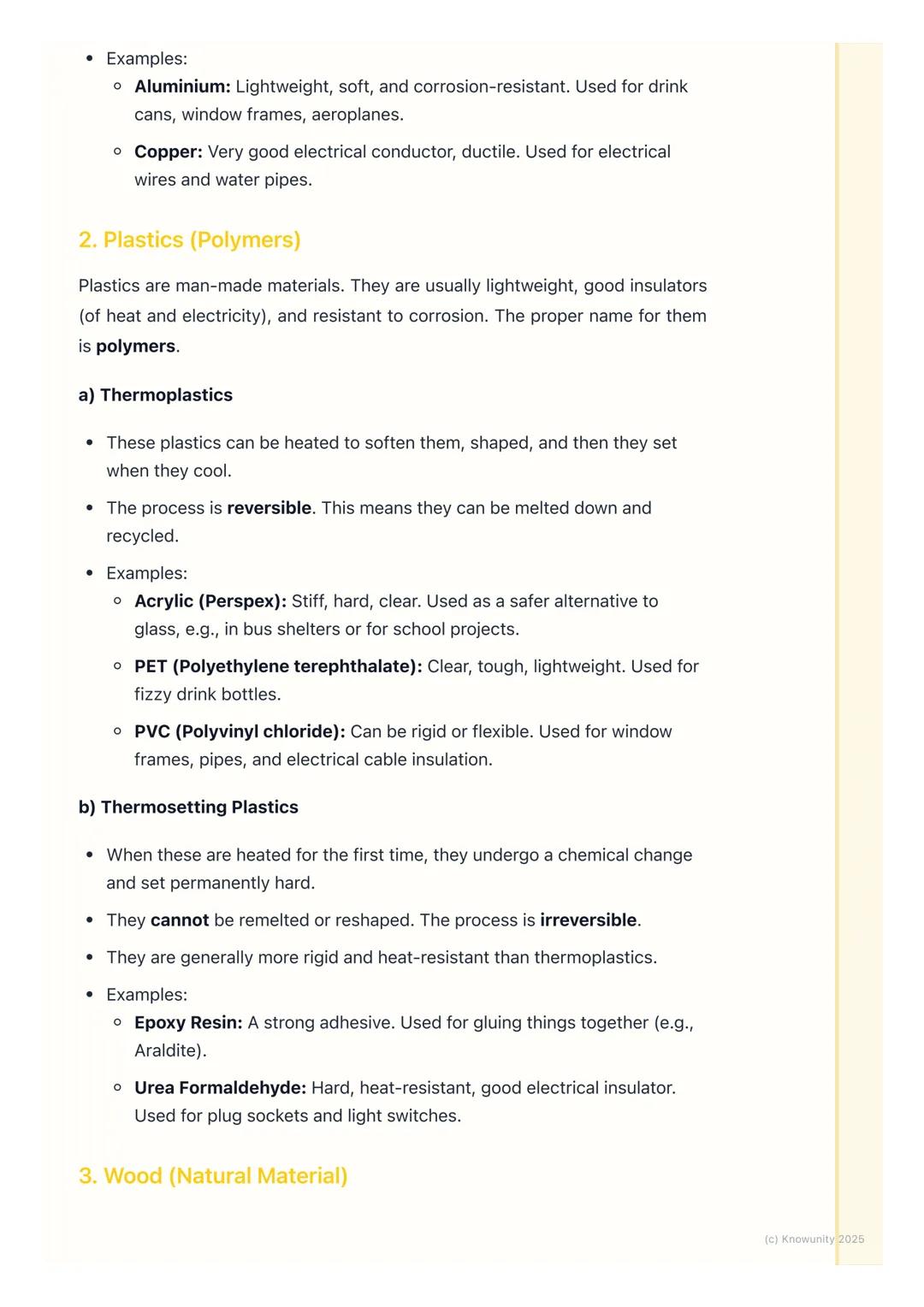

Plastics: Thermoplastics vs Thermosetting

Plastics (properly called polymers) are man-made materials that are lightweight, great insulators, and resist corrosion. The big difference is what happens when you heat them up.

Thermoplastics can be reheated, reshaped, and recycled - the process is reversible. Acrylic (like Perspex) is clear and hard, perfect for bus shelters where glass might be dangerous. PET makes your fizzy drink bottles - it's clear, tough, and lightweight. PVC is versatile, used for everything from window frames to pipe insulation.

Thermosetting plastics undergo a permanent chemical change when first heated - once set, they can never be remelted or recycled. Epoxy resin creates super-strong glues like Araldite. Urea formaldehyde is hard and heat-resistant, making it perfect for plug sockets and light switches that need to handle electricity safely.

Think of it like cooking: thermoplastics are like chocolate (melt and reset repeatedly), whilst thermosets are like cake (once baked, there's no going back).

Exam Gold: Remember - thermoplastics can be recycled, thermosetting plastics cannot!

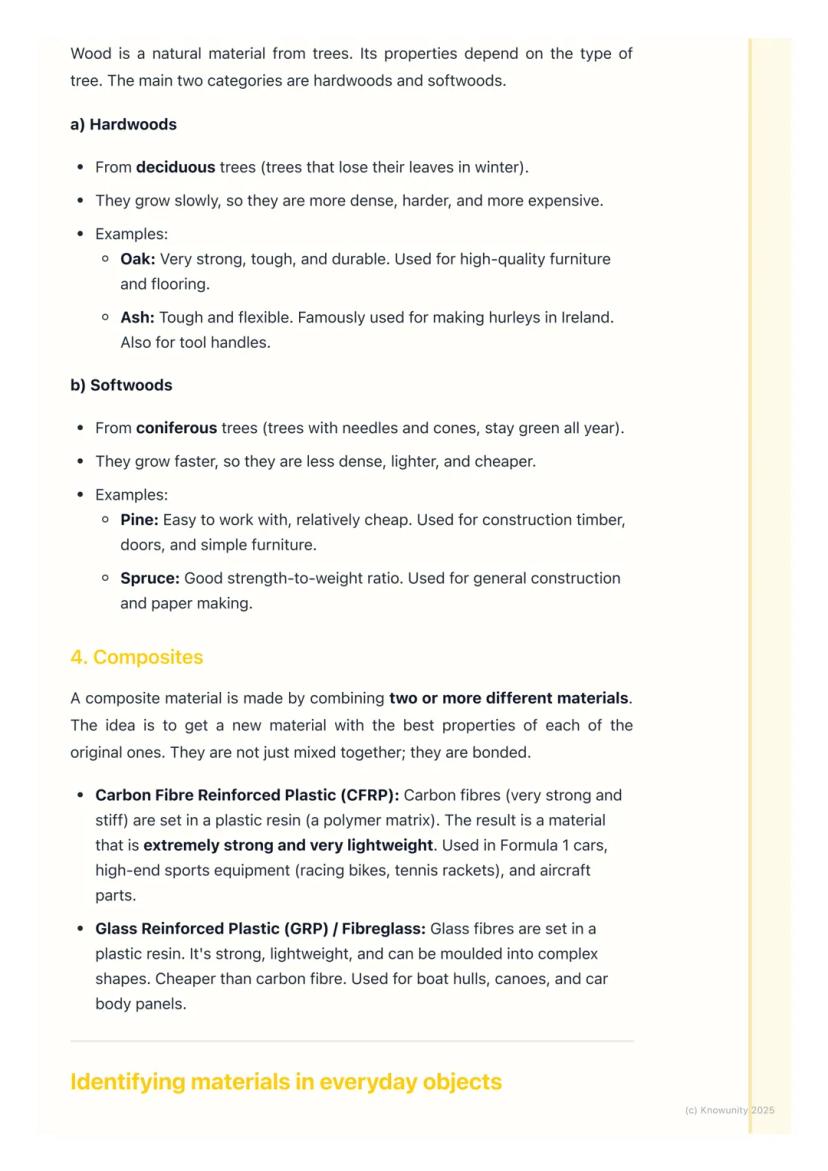

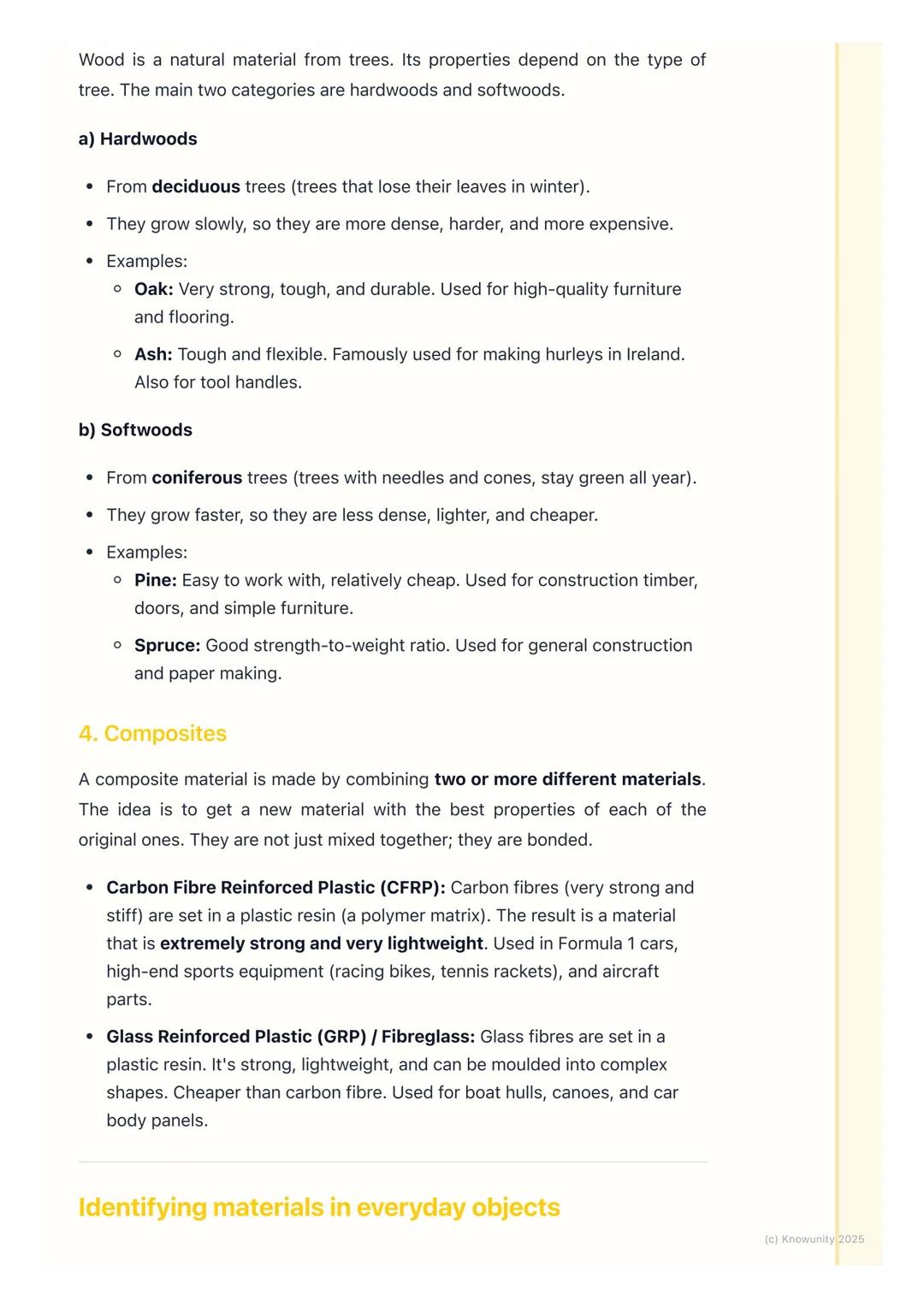

Wood and Composites

Wood comes in two main types based on tree species. Hardwoods come from deciduous trees (ones that lose leaves in winter) like oak and ash. They grow slowly, making them dense, strong, and expensive. Oak makes brilliant furniture, whilst ash is famously used for hurleys in Ireland because it's tough and flexible.

Softwoods come from coniferous trees (evergreens with needles and cones). They grow faster, so they're less dense and cheaper. Pine is easy to work with and perfect for construction timber, whilst spruce has a great strength-to-weight ratio.

Composites are the superstars of modern engineering - they combine different materials to get the best properties of each. Carbon fibre reinforced plastic puts incredibly strong carbon fibres in plastic resin, creating something stronger than steel but lighter than aluminium. Formula 1 cars and high-end bikes use this.

Glass reinforced plastic (fibreglass) is cheaper but still strong and lightweight, perfect for boat hulls and car panels.

Real World: Next time you see a racing bike or sports car, you're probably looking at composite materials designed for maximum strength with minimum weight!

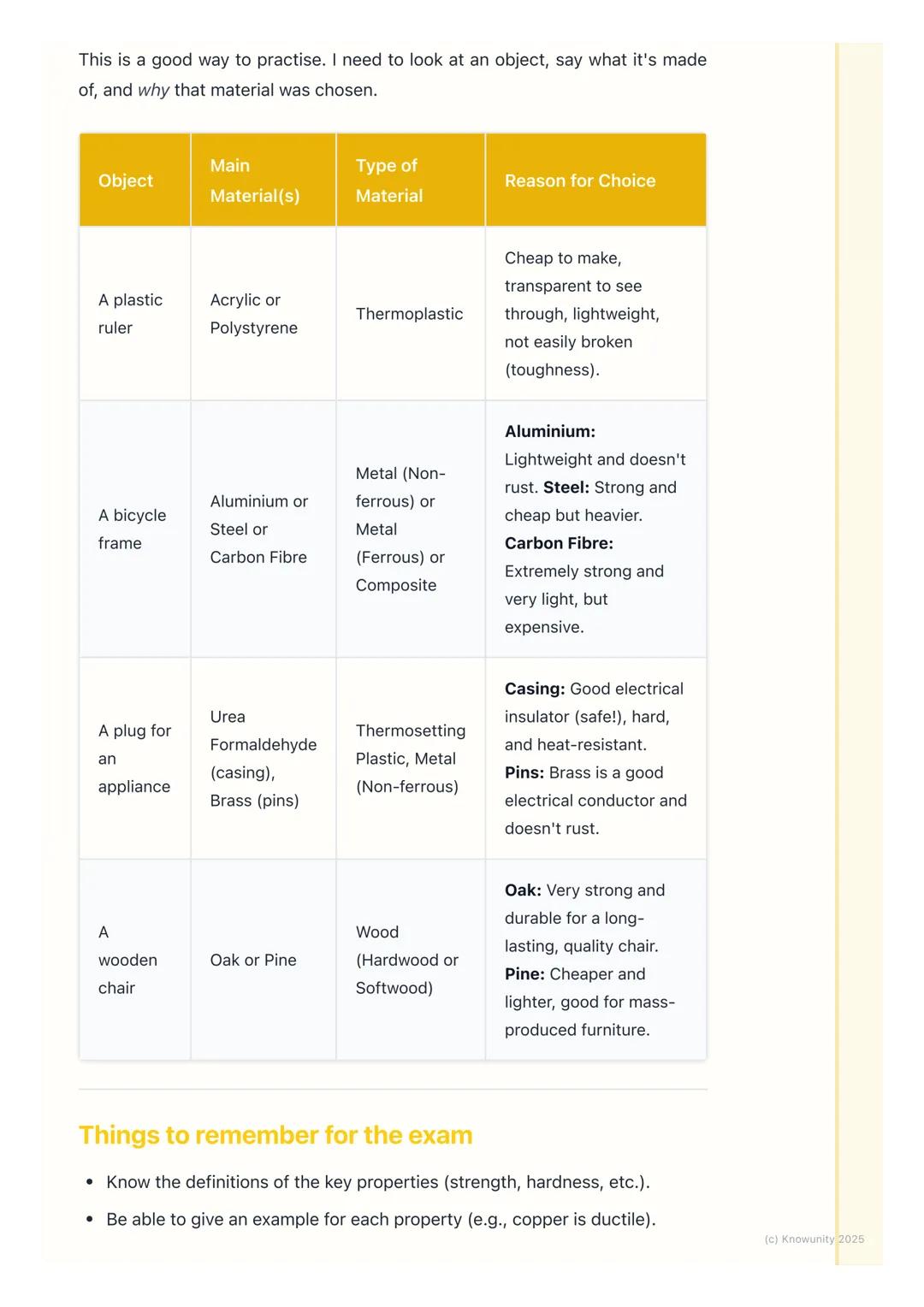

Material Selection in Practice

The secret to engineering success is matching material properties to job requirements. When you see any object, ask yourself: what material is this, and why was it chosen?

A copper wire works because copper is an excellent electrical conductor and highly ductile - it can be drawn into thin wires without breaking. Aluminium drink cans make sense because aluminium is lightweight, corrosion-resistant, and can be formed into complex shapes.

Steel car bodies use mild steel because it's strong, relatively cheap, and can be shaped easily (it's both malleable and ductile). The paint protects it from rusting. Plastic bottles use PET because it's clear, tough, lightweight, and can be recycled.

Understanding the 'why' behind material choices will make you think like an engineer. Every material selection is a careful balance of properties, cost, and performance requirements.

Exam Strategy: For any "Why was this material chosen?" question, always link back to specific properties - strength, conductivity, weight, cost, or durability!

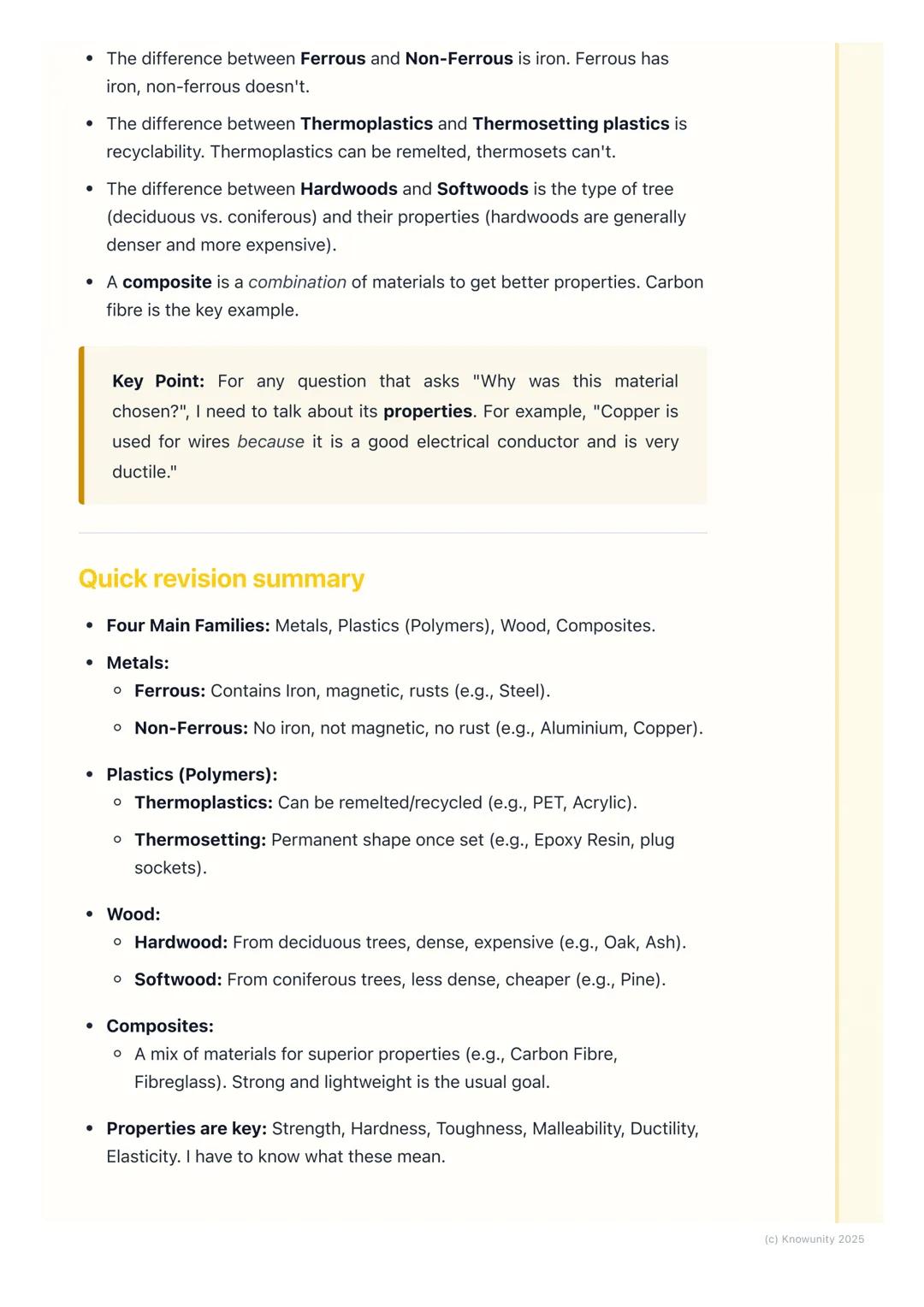

Quick Revision Summary

Here are the essential facts you need to nail any materials test. Four main families: Metals, Plastics (Polymers), Wood, and Composites.

Key differences: Ferrous metals contain iron (magnetic, rust), non-ferrous don't. Thermoplastics can be remelted and recycled, thermosetting plastics set permanently. Hardwoods come from deciduous trees (expensive, dense), softwoods from coniferous trees (cheaper, less dense).

Composites combine materials for superior properties - carbon fibre and fibreglass are your main examples, both aiming for strong yet lightweight results.

Properties vocabulary: Strength (resisting force), hardness (resisting scratching), toughness (absorbing impact), malleability (hammering into sheets), ductility (drawing into wires), elasticity (returning to shape), plasticity (staying deformed).

Remember the memory tricks: malleable = mallet = sheets, ductile = duct = wires, ferrous = Fe = iron content.

Final Tip: Master the properties and you'll ace any materials question - they're the foundation of everything in engineering!
